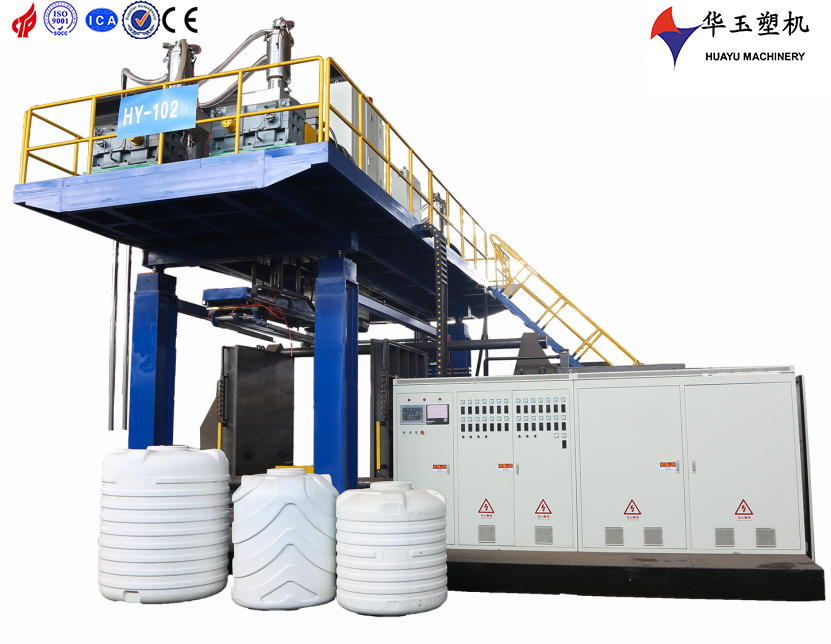

華玉1000升1層水桶吹塑機(jī)

1000L 水桶

?

1layer

2layers

3layers

4layers

5layers

6layers

7layers

8layers

制品容積

Capacity rang

L

200-1000L

200-1000

200-1000

200-1000

200-1000

200-1000

200-1000

200-1000

機(jī)器尺寸

Machine dimension

M

7.2*4.8*5.2

7*5.4*5.2

8*5.4*5.5

9*5.4*5.6

9.5*5.4*5.6

10*5.4*5.8

10.5*5.4*6

11*5.4*6.2

平均能耗

Average

KW

110

140

160

180

200

220

260

300

總功率

Total power

KW

196.5

230

270

331.5

405

460

520

580

料缸容量

Accumulator capacity

KG

35

35

35

35

35

35

35

35

擠出電機(jī)

Extruder ?motor

KW

75

45*2

75/37*2

37/37/45/37

37/37/45/37/37

37/37/45/37/37/37

37/37/45/37/37/37/37

37/37/45/37/37/37/37/37

螺桿直徑

Screw diameter

MM

110

100*2

110*1/80*2

80/80/100/80

80/80/100/80/80

80/80/100/80/80/80

80/80/80/80/80/80/80

80/80/80/80/80/80/80/80

螺桿長徑比

Screw L/D ratio

?

28:1

28:1

28:1

28:1

28:1

28:1

28:1

28:1

塑化能力

Plasticizing capacity

KG/H

200

350

360

360

375

380

380

400

模板尺寸

Platen size

MM

1500*1700*70

1500*1700*70

1500*1700*70

1500*1700*70

1500*1700*70

1500*1700*70

1500*1700*70

1500*1700*70

模板開距

Platen distance

MM

850*2600

850*2600

850*2600

850*2600

850*2600

850*2600

850*2600

850*2600

鎖模力

Clamping force

KN

800

800

800

800

800

800

800

800

伺服電機(jī)

Servo motor

KW

30KW

30KW

30KW

30KW

30KW

30KW

30KW

30KW
